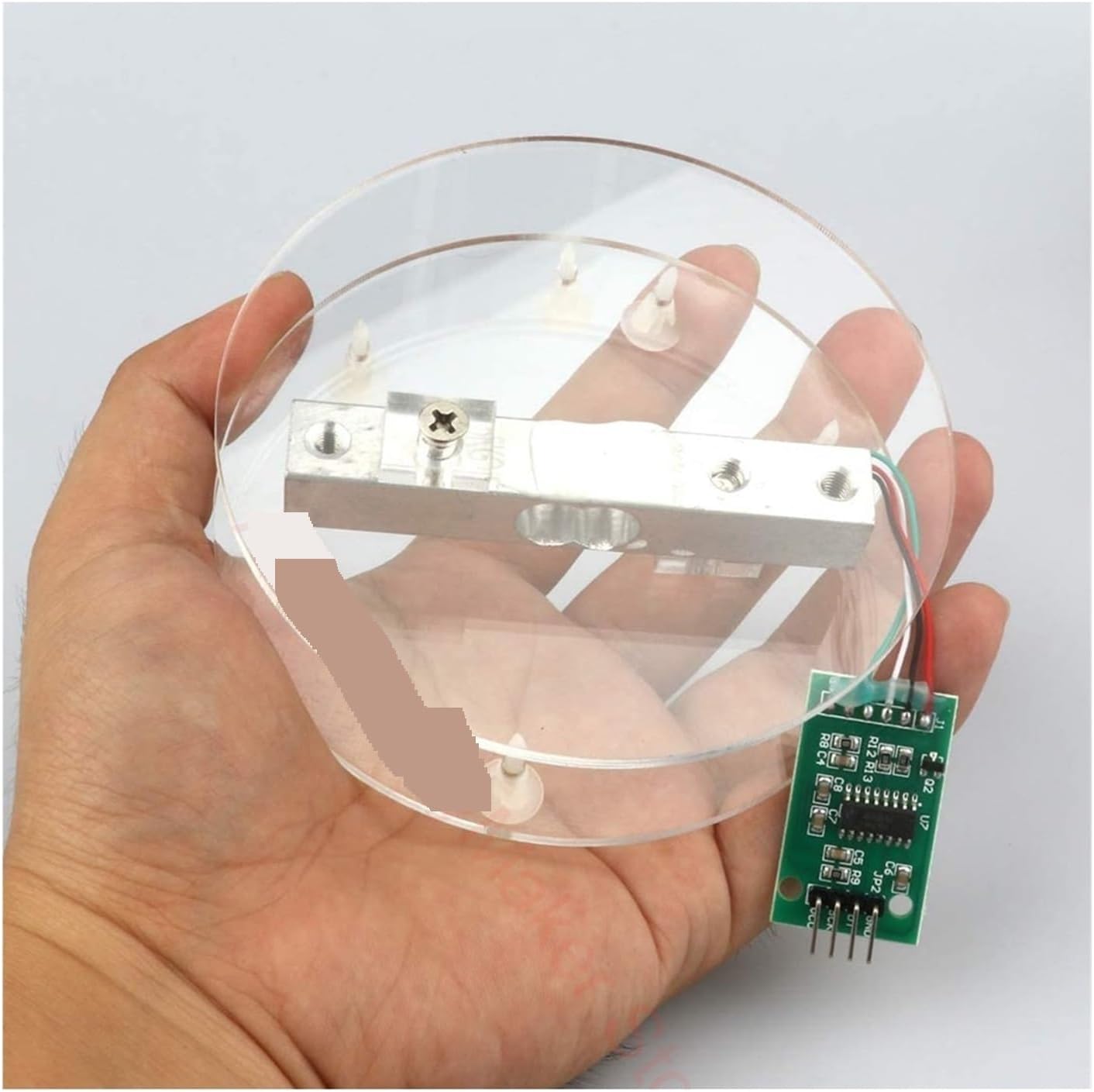

Load Cell, Digital Load Cell Weight Sensor HX711 AD Converter Breakout Module 5KG 10KG Portable Electronic Kitchen Scale for Hopper Weight High Pressure Tension Weighing(20KG) (1kg HX711)

Features: On-chip power-on-reset. Selectable 10SPS or 80SPS output data rate. Current consumption including on-chip analog power supply regulator: normal operation andlt; 1.5mA power down andlt; 1uA. Operation supply voltage range: 3.3V - 5V. Operating Temperature Range: -20 degree - +85 degree. HX711 is Mounted on breakout board, includes headers for connection, soldering required Parameter: Bracket Diameter: 10cm(Tray Diameter) Operation Voltage: 3.3V5V(recommended 5V) Maximum Measures Force: 5kg Appearance Height: 3.5cm(include Pillar) AD Module: HX711(24 bit high precision A/D converter chip hx711) Post-calibration Accuracy: Within 1g Operation Current: andlt; 1.5mA Connection:Red to E+ Black to E- Green to A+ White to A- Note: Be sure not to directly press on the white cover to prevent damage to the sensor. Package Including 1 * Weight Sensor 1 * HX711 24BIT Precision AD Module Converter, Sensors, Active Components, Electronic Components & Supplies

• Two selectable differential input channels.
• On-chip active low noise PGA with selectable gain of 32, 64 and 128.
• On-chip power supply regulator for load-cell and ADC analog power supply.
• On-chip oscillator requiring no external component with optional external crystal.
• Simple digital control and serial interface: pin-driven controls, no programming needed.
